Patent Integrated Solar Street Light Bosun QBD-CW Series

Elegant and patent design all in one solar street light. Integrating high-efficiency solar panels, 8-year ultra-long life LiFePo4 battery, high-light efficiency LED and intelligent controller Pro-Double MPPT, anti-theft mounting bracket, etc…

Mode: QBD-CW

CCT: 3000-6500K optional

Lumens Im: 18lm/w

Beam angle: 70°*150°

Send email to us Product Manual

Product Detail

Product Tags

QBD-CW Series integrated solar street light, with high-efficiency solar panels, ultra-long-life lithium batteries, high-light-efficiency imported leds, and smart controller Pro-Double MPPT. Simple and high-end design, with light weight and easy for installation, high level waterproof, anti-rust and energy saving

FEATURES

High-end elegant design QBD-CW Series All in One Solar Street Light

1.Monocrystalline silicon solar panel

Charging efficiency more than 12%

2.Design

Elegant patent die-casting aluminum design

3.Patent Charging controller

Pro-double MPPT controller absorbs the sun quickly on multiple rainy days, faster charging.

4.Optical lens

Light transmittance>96%, the direction can be changed, beam angel meet the standard of road lighting resulting in light remaining much to reach on the ground and wide light distribution

5. Lithium iron phosphate battery(Built-in BMS)

All batteries are repeatedly tested and have a long service life.

6.Installation method

Available in both curved and straight pole installations: clamp and bracket installation methods.

SPECIFICATIONS

PRODUCT ADVANTAGES

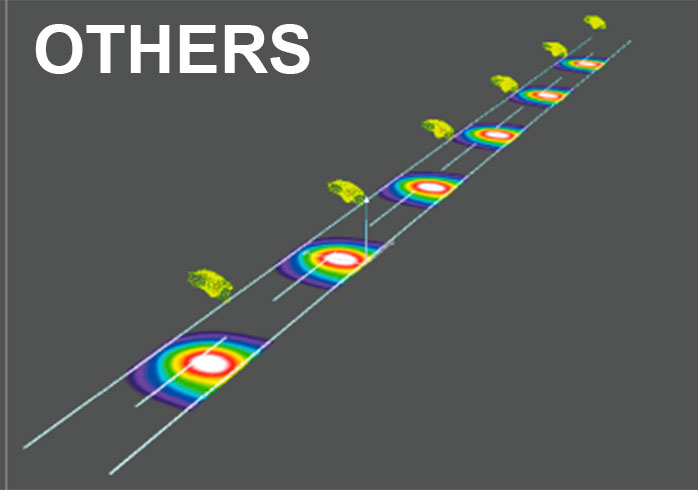

Beam angle and Led

QBD-CW series are using optical lens, the light transparent is over 96% and the beam angle is 70*150°. While other suppliers are using reflectors, the light transparent is only about 85% and the beam angle is narrow.So the illuminated area of our QBD-CW series are much wider than others and the brightness are much better.

Our IES-Lum-Efficiency

Bosun's all in one solar street light QBD-CW series are made of Bosun patent solar controller, which is developed by Bosun's own R&D team and has been upgraded for 3 times. The efficiency of Bosun patent controller is almost 50% higher than other normal controller like PWM.

WORK AT ALL CLIMATES

With Lithium battery / LiFePo4 battery's high temperature resistance, controller's temperature compensated function and BMS' temperature protection system, QBD-CW series are able to work under all extreme climate conditions.

VIDEOS

Pakistan provincial project feedback, 250pcs of QBD-CW-120W

Cambodia villa project feedback, 20pcs of QBD-CW-120W surrounding the villa

QBD CW Series Introduction

INFRARED CONTROL FUNCTION DESCRIPTION

INFRARED CONTROL FUNCTION DESCRIPTION

BOSUN adopts the patented linear dimming mode to achieve humanized management of ground illumination, which can better avoid the occurrence of safety hazards compared to other dimming modes.

Automatic Time Control Mode
