IoT solar street light is a more intelligent road lighting product combined with IoT technology. It can calculate the power generation in real time through IoT and tell us how much carbon emission has been reduced. At the same time, it can monitor the operation status of the solar street light in real time through IoT, and put a real-time alarm to the faults, which can greatly improve the maintenance efficiency of the solar street light.
National Standard Of LED Street Light BOSUN® Smart Solar Light System (SSLS)
Solar smart lighting is mainly the use of Internet of Things technology equipment, through BOSUN® patent software platform(SSLS) based on the real-time conditions of the surrounding environment
and seasonal changes, weather conditions, illumination, special holidays, etc. to promote the soft start of solar street lights and for the control led street light brightness, by the needs of humane lighting, to ensure safety while achieving secondary energy saving, improve the quality of lighting.
4G/LTE Smart Solar Light Solution
BOSUN® Patented Intelligent Solar Smart Lighting System (SSLS)

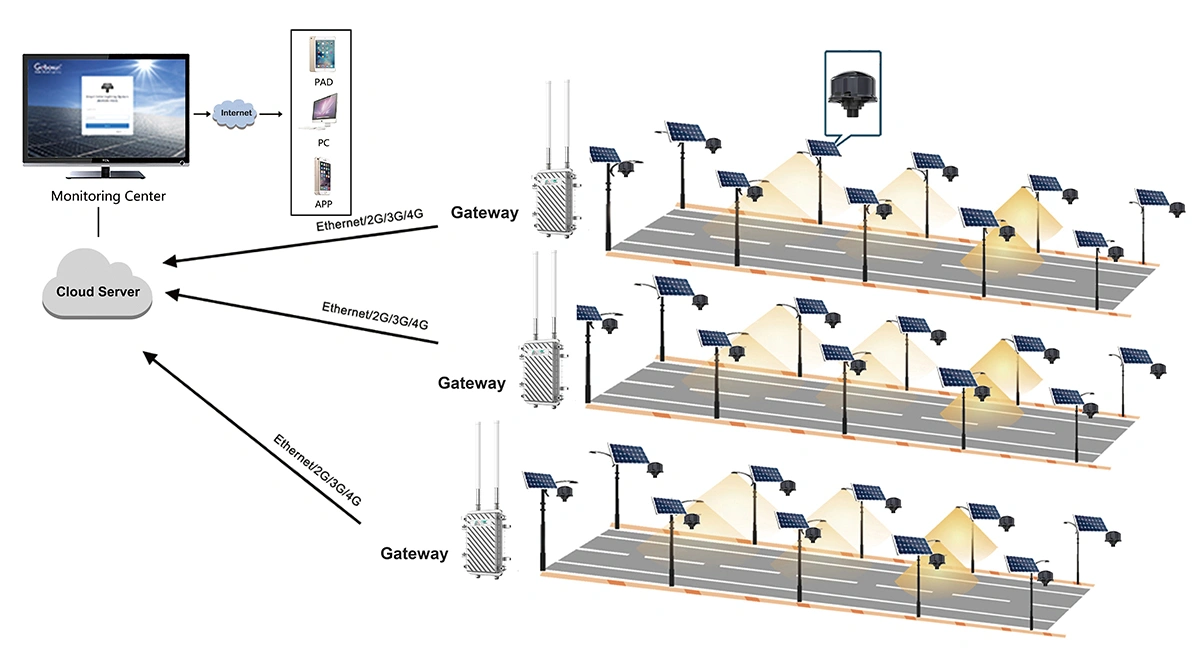

BOSUN® patented intelligent solar smart lighting system(SSLS), including solar street lamp sub-side, single lamp controller sub-side and centralized management platform; Solar street lamp sub-side includes solar panel, LED lamp, battery and solar charge controller, solar charge controller includes MPPT charging circuit, LED driving circuit, AC/DC power supply circuit, photosensitive detection circuit, temperature detection circuit and infrared receiving and transmitting circuit; single lamp controller includes 4G or ZigBee module and GPRS module; individual solar street lamp is connected to centralized management side through 4G or ZigBee communication circuit for wireless communication, and centralized management system is connected to single lamp with GPRS module. The single lamp controller includes 4G or ZigBee module and GPRS module; through 4G or ZigBee communication circuit, the individual solar street lamp is connected to the centralized management terminal for wireless communication, and the centralized management terminal and the single lamp control terminal are connected to the Internet for wireless communication through GPRS module to combine into the whole system, which is convenient for system management control.
The core equipment supporting the intelligent solar system of BOSUN Lighting.
1.Intelligent Pro-Double-MPPT solar charge controller.
2.4G/LTE or ZigBee light controller.

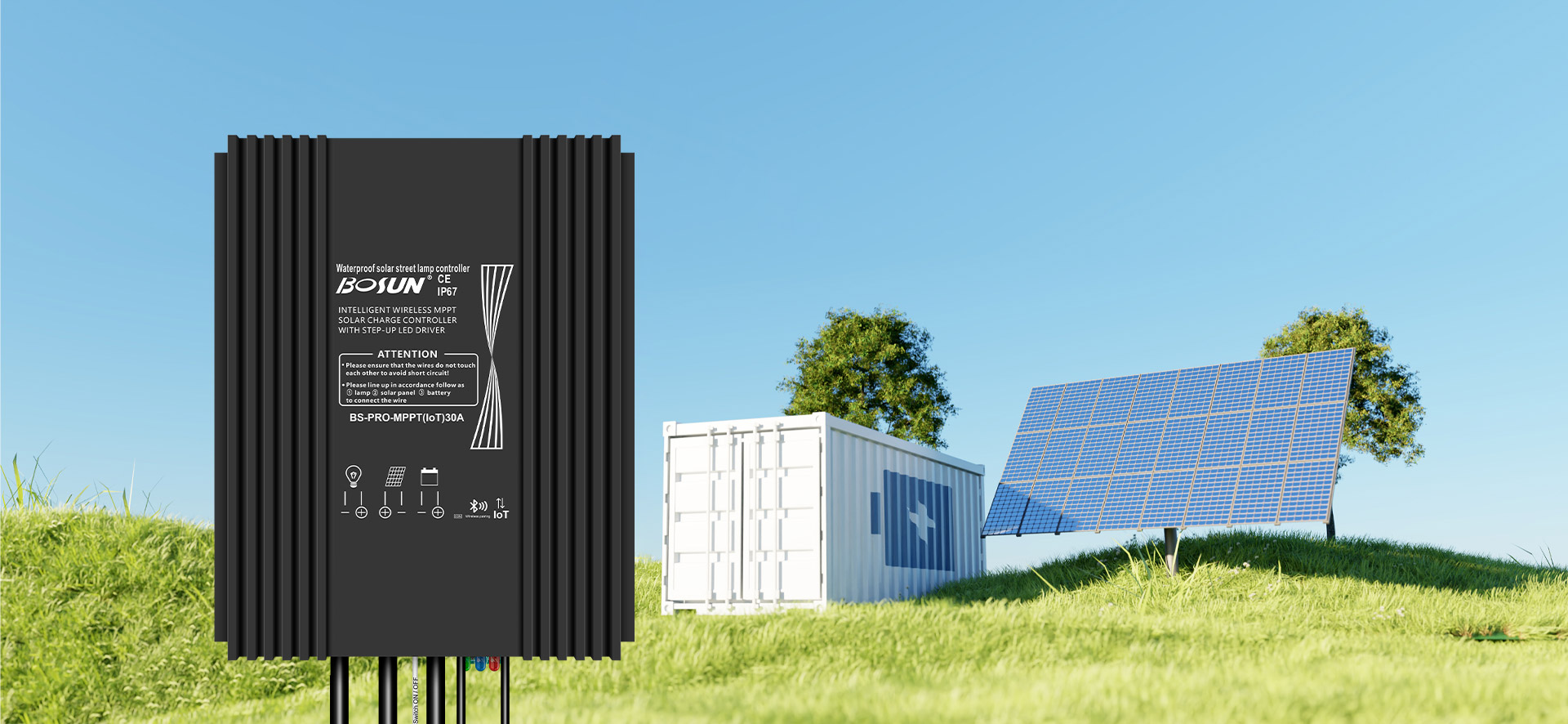

Intelligent Pro-Double-MPPT(IoT) Solar Charge Controller
Based on 20 years of experience in research and development of solar controllers, BOSUN Lighting has developed our patented intelligent solar charge controller Pro-Double-MPPT(S) Solar Charge Controller after continuous technical innovation. Its charging efficiency is 40%-50% higher than the charging efficiency of ordinary PWM chargers. This is a revolutionary progress, which makes full use of solar energy while greatly reducing the cost of the product.
●BOSUN® patent Pro-Double-MPPT(S) maximum power tracking technology with 99.5% tracking efficiency and 97% charging conversion efficiency
●Multiple protection functions such as battery/PV reverse connection protection, LED short circuit/open circuit/power limit protection
●A variety of intelligent power modes can be selected to automatically adjust the load power according to the battery power
●Extremely low sleep current, more energy efficient and convenient for long distance transportation and storage
●IR/microwave sensor function
●With IOT remote control interface (RS485 interface, TTL interface)
●Multi-time programmable load power&time control
●IP67 waterproof

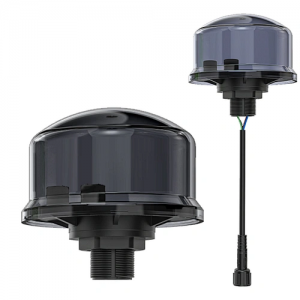

4G/LTE Solar Light Controller
The solar Internet of Things module is a communication module that can adapt to the solar street lamp controller. This module has 4G Cat.1 communication function, which can be remotely connected to the server in the cloud. At the same time, the module has infrared /RS485/TTL communication interface, which can complete the sending and reading of the parameters and status of the solar controller. Main performance characteristics of the controller:
·Cat1. Wireless communication
·Two types of voltage input of 12V/24V
·You can control most of the mainstream solar controller in China through RS232 communication
·Remote control and information reading of the computer interface and mobile phone WeChat mini -program
·Can remote switch load, adjust the power of the load
·Read the voltage/current/power of the battery/load/sunglasses inside the controller
·Fault alarm, battery/solar board/load fault alarm ·Remote the parameters of multiple or single or single controller
·Module has base station positioning function ·Support remote upgrade firmware
Zigbee Smart Solar Light Solution
BOSUN® Patented Intelligent Solar Smart Lighting System(SSLS)
BOSUN® patented intelligent solar smart lighting system(SSLS), including solar street lamp sub-side, single lamp controller sub-side and centralized management platform; Solar street lamp sub-side includes solar panel, LED lamp, battery and solar charge controller, solar charge controller includes MPPT charging circuit, LED driving circuit, AC/DC power supply circuit, photosensitive detection circuit, temperature detection circuit and infrared receiving and transmitting circuit; single lamp controller includes 4G or ZigBee module and GPRS module; individual solar street lamp is connected to centralized management side through 4G or ZigBee communication circuit for wireless communication, and centralized management system is connected to single lamp with GPRS module. The single lamp controller includes 4G or ZigBee module and GPRS module; through 4G or ZigBee communication circuit, the individual solar street lamp is connected to the centralized management terminal for wireless communication, and the centralized management terminal and the single lamp control terminal are connected to the Internet for wireless communication through GPRS module to combine into the whole system, which is convenient for system management control.
The core equipment supporting the intelligent solar system of BOSUN® Lighting.
1.Intelligent Pro-Double-MPPT solar charge controller.
2.4G/LTE or ZigBee light controller.

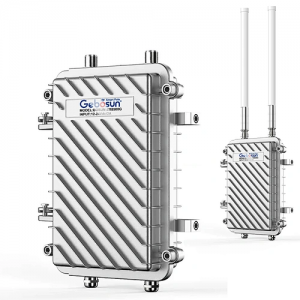

Wireless Gateway
Wireless gateway, support GPRS/4G/Ethernet communication mode,support Zigbee transmission (2.4G or 915M).
·Support Zigbee transmission (2.4G or 915M), MESH route
·Support GPRS/4G and Ethernet communication mode
·Built-in RTC, support local scheduled task
·All-in-one waterproof aluminum case
·Firmware upgrading: online or cable
·Optional configuration: GPS ·96-264V AC input
·Network indicator
Wireless lamp controller
A lamp controller linked with LED driver, communicate with BOSUN-ZB8200CLR/BOSUN-ZB8500G by Zigbee. Remotely turn ON/OFF, dimming(0-10V/DALI),automatically report, Failure detection, 96-264VAC, 2W, IP67
·Built-in power meter, it supports remotely read real-timestatus and parameters like voltage, current, power andenergy, etc.
·Automatically report failure notification to server and alltrigger thresholds are configurable
·Failure detection: lamp failure, power failure, over voltageover current, under voltage.
·It supports dimming interface: PWM and 0-10V.
·Remotely turn ON/OFF, built-in 16A relay.
·Built-in RTC,it supports scheduled tasks
·Optional configuration: tilt detection.
·Lightning protection
Recommended Models To Smart Solar Street Light

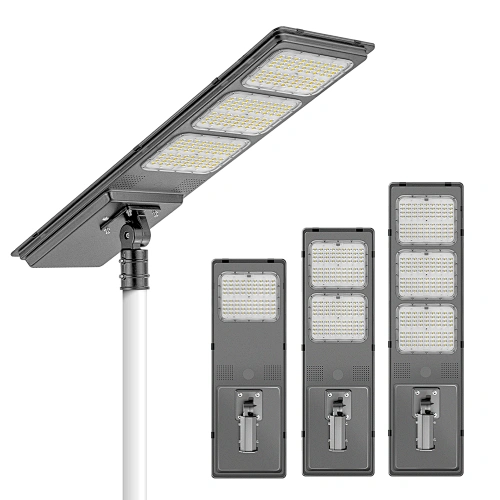

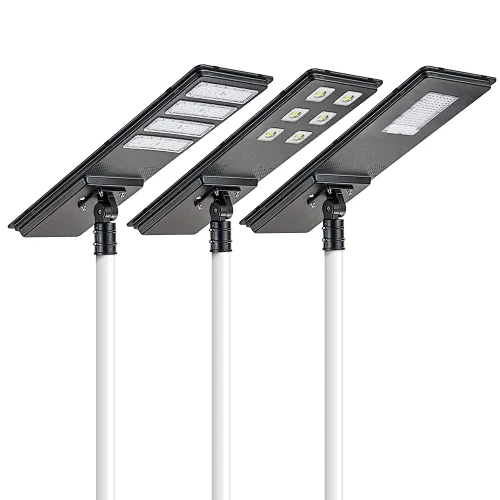

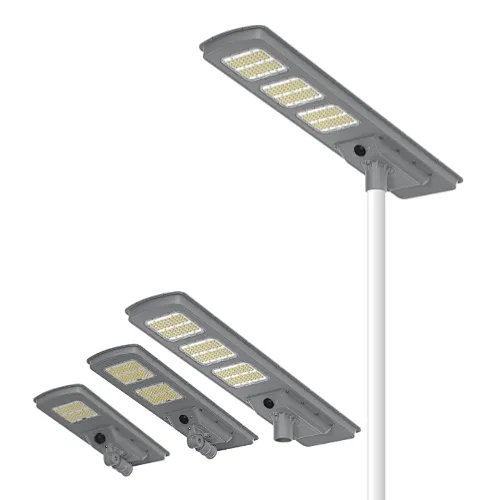

All In One Solar Lights
BOSUN® Lighting all-in-one solar-powered street lights is the most integrated model. It integrates all components such as solar panels, lithium batteries, and BOUSN® Lighting patent technology Pro-Double MPPT solar charge controller and Philips LEDs all together with the lighting fixture as one unit with high lumens output.

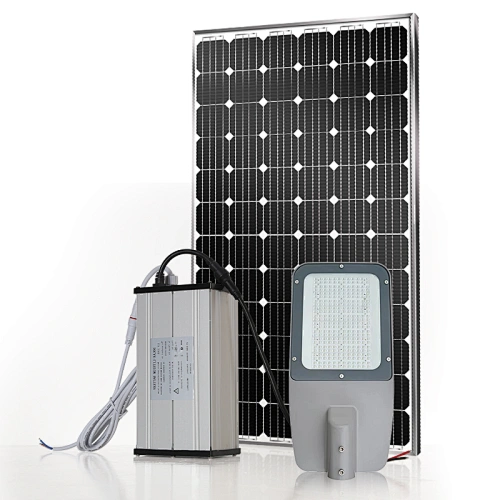

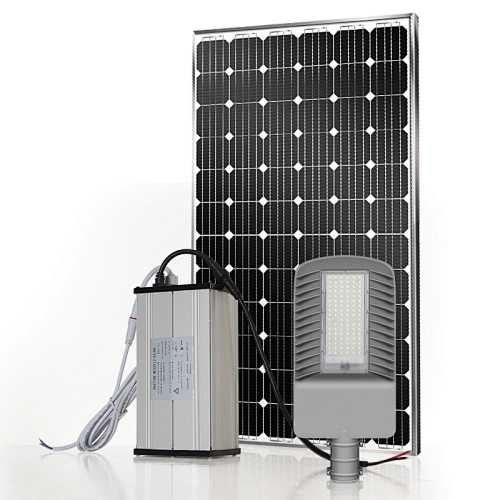

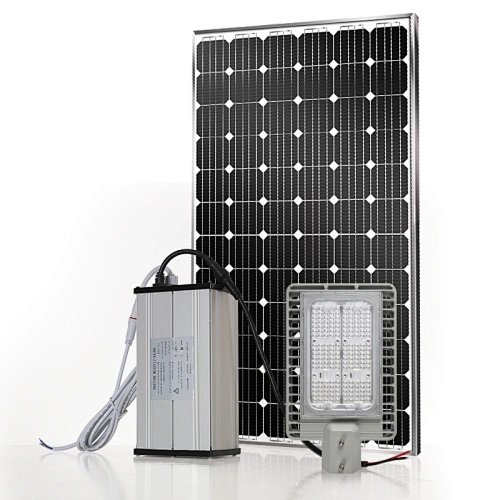

Split Solar Street Light
The whole system adopts a split design with IP65 waterproof, with completely separate design of solar panel, LED Lamp and lithium battery unit. Lithium Battery units are usually mounted under panels or hung from light poles. Because the size of solar panels and lithium battery units can be large without limitation, it can support high-power LED lamp output to work for a long time, but the installation is more complicated than other models.
