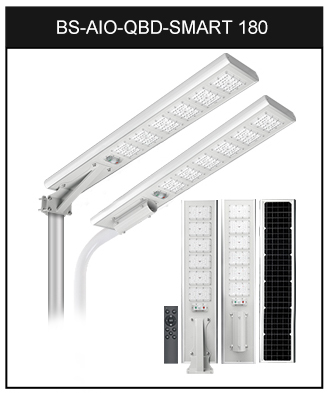

High power solar street light BOSUN BS-QBD SERIES
QBD SMART series integrated solar street light(Solar panel, battery, solar controller, and Led modules all in one set) with motion sensor, high-end aluminum housing for both distribution and project, different kinds of installation method, suitable for all types of road and scene.Adjustable working mode with remote control, ensure working 12 hours every night. Strong feedback for 3-5 rainy or cloudy day.
FEATURES
Outstanding features of QBD SMART series integrated solar street light
1.Monocrystalline silicon solar panel
Grade A high quality monocrystalline solar panel, charging efficiency >21%
2.Charging/lights on indicator
Turn on the switch for charging and installation
3.Patent PRO-DOUBLE MPPT
45%-50% higher efficiency
than normal PWM solar controller
4.Optical lens
Principle design of optical lens, super high transmittance ≥96%
5.Radar induction
100% brightness when people around, energy saving(20% brightness) when no people around

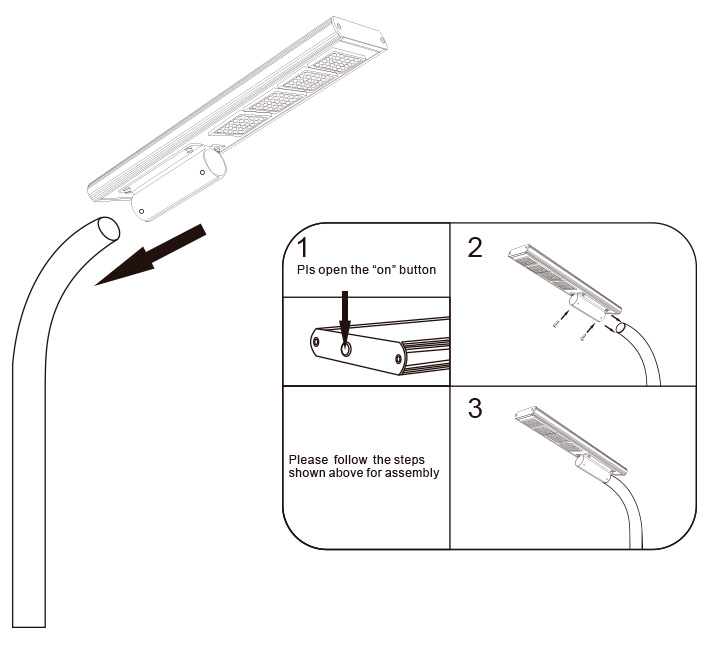

6.Installation method
Pole or Wall installation for different scene.
SPECIFICATIONS
COMPARATION BOSUN PRODUCT & OTHERS
Our Future-optional lens VS reflectors
Optical lens
1.Light transmittance>96%.
2.Light direction can be changed.
3.Beam angel meet the standard of road lighting.
Result :
1.light remain much to reach on ground.
2.light distribution is wide.
Reflector
1. Light transmittance <85%
2. The light angle is very fixed, can not be changed
3. No standard for the beam angle, can not meet the requirements of road lighting
Result :
1. By eyes, very bright, in fact, less light reaches on the ground
2. Llight distribution is very narrow
Our IES-Lum-Efficiency
Result:169.2-84.38=84.82Lm/w almost double brightness than others
Our future-Dialux-distance
Pole to pole distance much longer than others
Bat-Wing beam angle
Result: Lighting area much bigger than others!
Our future-IES-total Center lux
Result：same height, 30% HIGHER brightness！
Our future-Dialux-Height
Result: In the same power, we can apply in HIGHER POLE!
WORK AT ALL CLIMATES
With Lithium battery / LiFePo4 battery's high temperature resistance, controller's temperature compensated function and BMS' temperature protection system, QBD SMART series are able to work under all extreme climate conditions.
VIDEOS
BOSUN QBD-CW All In One Solar Street Light For Wholesale & Project
BOSUN 1200pcs QBD-60W Solar Street Lights Light Up In Karachi Airport, Pakistan
BOSUN Patented Product-QBD Series All In One Solar Street Light
INFRARED CONTROL FUNCTION DESCRIPTION
INFRARED CONTROL FUNCTION DESCRIPTION
Patented linear dimming mode is adpoted by BOSUN to achieve humanized management of ground illumination. Compared to other modes, Bosun's dimming mode can better avoid the occurrence of safety hazards.
Automatic Time Control Mode
Autonomy Days Backup
Motion Sensor Control Mode (Optional)
Add a MOTION SENSOR, the light is 100% on when there is acar passing by,
work in dimming mode when there is no car passing by.
FREE DIALux DESIGN
Help You Win Government
And Commercial Projects More Easily
Download DIALux solutions for your reference
Expressway-AIO-12M pole & 8 Lines road & 100W solar street light
Park-AIO-5M pole & 2Lines road & ABS60W solar street light
Packing Lot-AIO-6M pole & 2Lines road & 20W solar street light(20M)
Rural Road-AIO-8M pole & 4 Lines road & 60W solar street light(35M)
Urban Road-AIO-10M pole & 6 Lines road & 80W solar street light(35M)
FREE DIALux DESIGN
Plug & Play Solution replaces switches, which makes installation much easier and is more durable than switches.
PROJECT REFERENCE
Vietnam Project
4 modules commercial solar street lights mounted on a 6-meter pole at home.Our customer recevied his client feedback said that he is satified with our lamps which made their house brightness.Our customer is happy and repeat 200pcs order of the same model because many person want to buy from him after visit his house.
Vietnam is a big market for solar street light, especially for our QBD all in one solar street light.
No matter for wholesales or for projects, customers all love to choose this model.
